HK707+ -VN
Features
- Off the road/
- Only fit for Mine truck
- Applied for short-haul and heavy loaded dumping trucks.
- Aggressive lug pattern design provides excellent grip and traction performance.
- Excellent stab-resistance, anti-eccentric worn, avulsion resistance and tread wear ability.
Suitable Conditions
Off the road/Only fit for Mine truck
Share To:
Suitable
Size And Specs

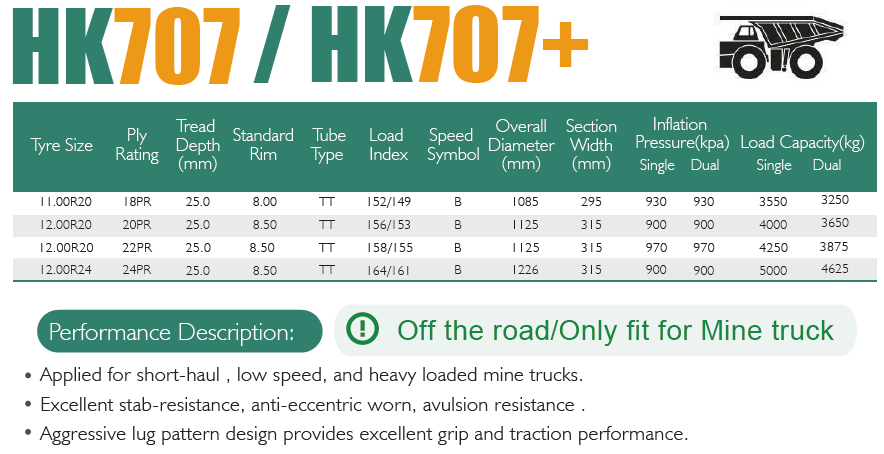

| TYRE SIZE | PLY RATING | TREAD DEPTH (MM) | STANDARD RIM | TUBE TYPE | LOAD INDEX | SPEED SYMBOL | OVERALL DIAMETER(mm) | SECTION WIDTH（mm) | INFLATION PRESSURE（kpa) | LOAD CAPACITY（kg) | ||
| SINGLE | DUAL | SINGLE | DUAL | |||||||||
| 11.00R20 | 18PR | 24.0 | 8.00 | TT | 152/149 | K | 1085 | 293 | 930 | 930 | 3550 | 3250 |
| 12.00R20 | 20PR | 25.0 | 8.50 | TT | 156/153 | K | 1125 | 315 | 900 | 900 | 4000 | 3650 |
| 12.00R20 | 22PR | 25.0 | 8.50 | TT | 156/153 | K | 1125 | 315 | 900 | 900 | 4250 | 3875 |
